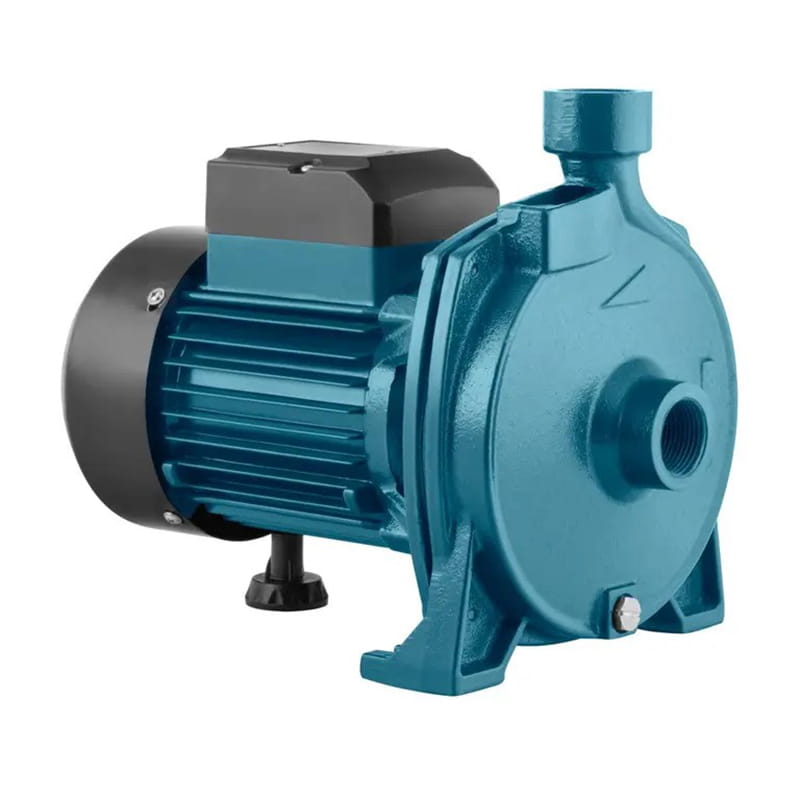

Centrifugal water pump RONIX RH-4021

Manufacturer: RONIX Model: RH-4021

Product Description:

• Power: 1hp

• Voltage: 220-240V

• Frequency: 50Hz

• Minimum flow 0.3m³/h

• Max. flow: 6.6m³/h

• Minimum pressure: 5m

• Max. pressure: 32m

• Inlet/Outlet Port Diameter: 1 inch X 1 inch

• Suction height: 8m

• Speed: 2850 rpm

• Max. liquid temperature: ℃60

• Max. ambient temperature: ℃40

• Working pressure: 3.2BAR

• Protection level: IP44

• Insulation class: CLASS B

• Pump body material: cast iron

• Motor housing material: Aluminum

• Mechanical seal material: Ceramic/Graphite
• Coil winding material: Copper

• Impeller material: Brass

• Shaft material: SS304+45


Physical parameters:

• Weight: 13 kg
• Color: Blue
