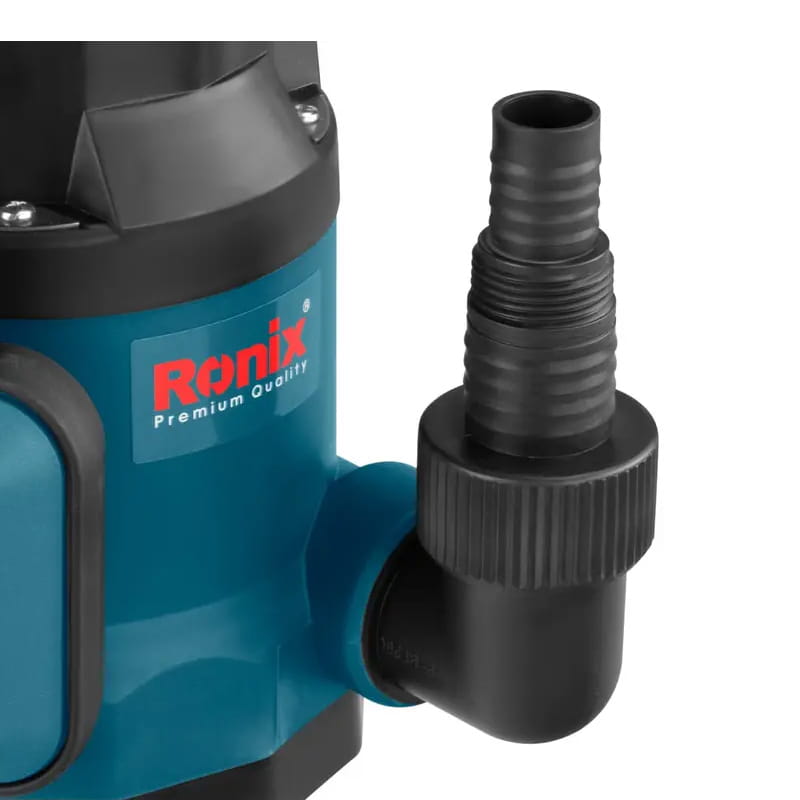

Submersible dirty water pump RONIX RH-4040

Manufacturer: RONIX Model: RH-4040

Product Description:

• Power: 1 hp

• Voltage: 220-240 V

• Frequency: 50 Hz

• Min. flow: 0.6m³/h

• Max. flow: 10 m³/h

• Min. compression: 2.8m

• Max. compression: 9 m

• Inlet/outlet port diameter: ½”1

• Speed: 2850 rpm

• Max. liquid temperature: ℃35

• Max. ambient temperature: ℃40

• Working pressure: 0.9 bar

• Solid passage diameter: 4 mm

• Maximum immersion depth: 5 m

• Maximum dry run time: 30 sec.

• Protection level: IP68

• Insulation class: Class B

• Pump body material: PP

• Motor housing material: PP

• Mechanical seal material: C/G

• Motor protection: Thermal protector

• Winding material: copper

• Impulse material: PPO

• Shaft material: SS304+45#

Physical parameters:

• Weight: 4.7 kg
• Color: Blue
