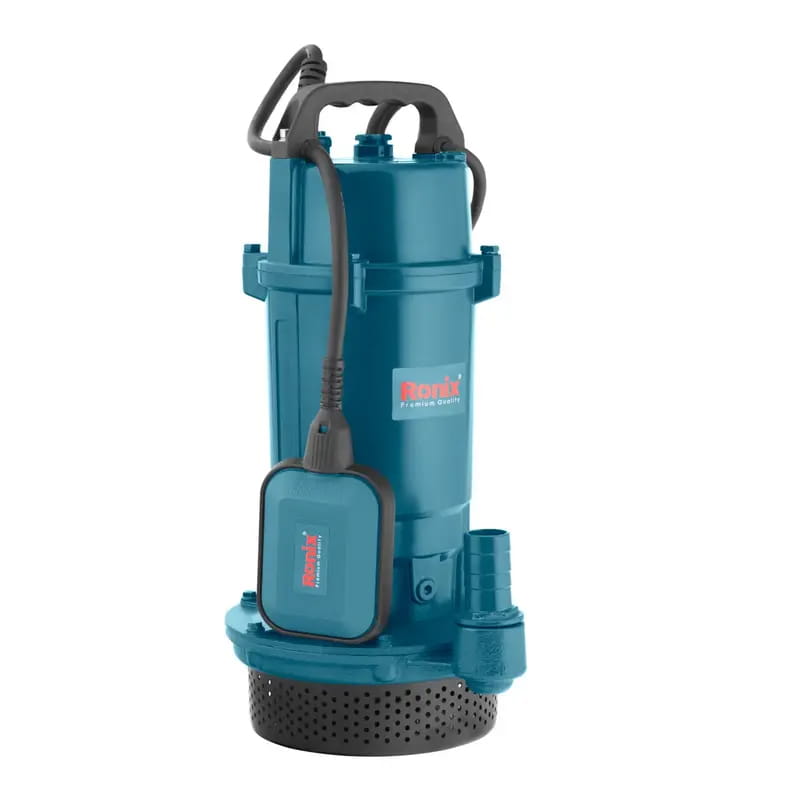

Water pump RONIX RH-4032

Manufacturer: RONIX Model: RH-4032

Product Description:

• Power: 1 hp

• Voltage: 220-240 V

• Frequency: 50 Hz

• Min. flow: 0.6m³/h

• Max. flow: 8.4 m³/h

• Min. compression: 8.8m

• Max. compression: 32 m

• Inlet/outlet port diameter: 1"

• Speed: 2850 rpm

• Max. liquid temperature: ℃35

• Max. ambient temperature: ℃40

• Working pressure: 3.2 BAR

• Solid passage diameter: 2 mm

• Maximum immersion depth: 5 m

• Maximum dry run time: 30 seconds

• Protection level: IP68

• Insulation class: Class B

• Pump body material: cast iron

• Motor housing material: Aluminum

• Mechanical seal material: C/G

• Motor protection: Thermal protector

• Winding material: copper

• Impeller material: Aluminum

Physical parameters:

• Weight: 11.6 kg
• Color: Blue
