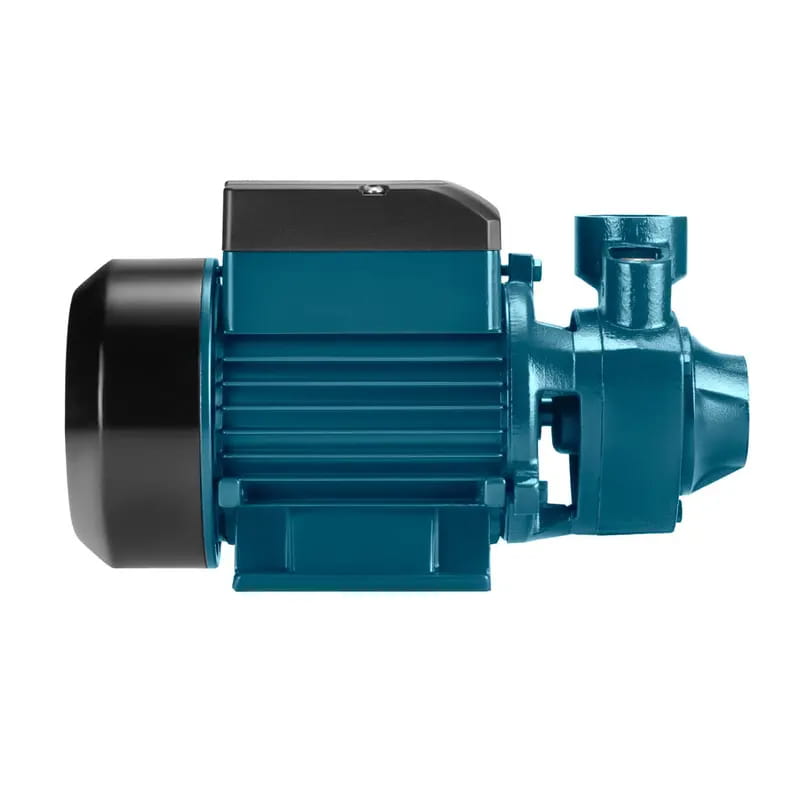

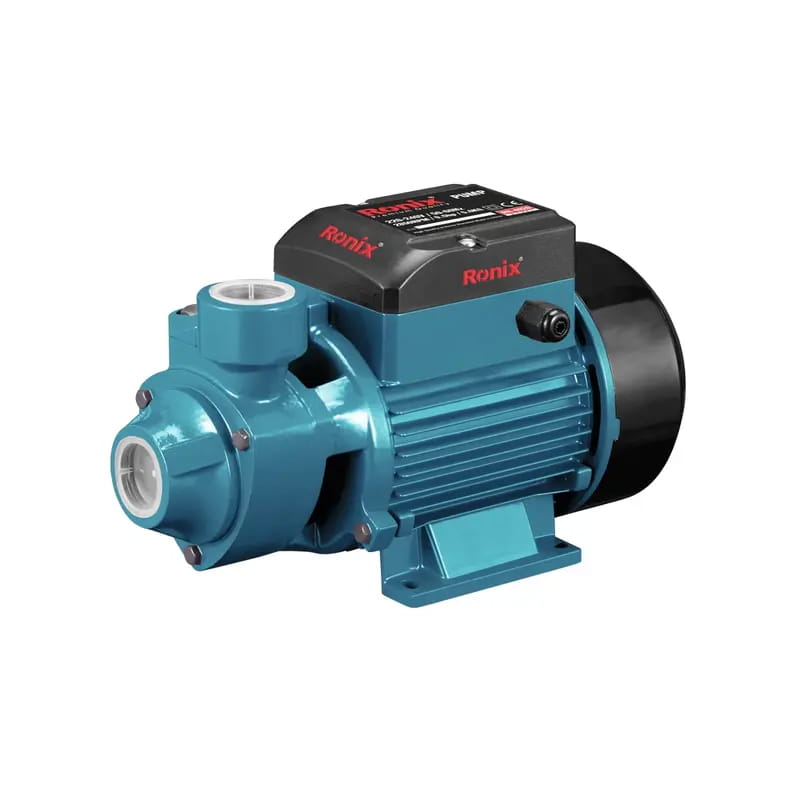

Peripheral water pump RONIX RH-4020

Manufacturer: RONIX Model: RH-4020

Product Description:

• Power: 0.5 Hp

• Voltage: 220-240V - 50/60 Hz

• Min. flow: 0.3m³/h

• Max. flow: 1.9 m³/h

• Min. compression: 3m

• Max. compression: 35 m

• Inlet/Outlet Port Diameter: 1In X 1In

• Suction height: 8 m

• Speed: 2850 rpm

• Max. liquid temperature: ℃60

• Max. ambient temperature: ℃40

• Working pressure: 3.5 bar

• Protection level: IP44

• Insulation class: Class B

• Pump body material: cast iron

• Motor housing material: Aluminum

• Mechanical seal material: C/G

• Security system: Emperor lock
• Anti-system

• Motor protection: Thermal protection

• Winding material: copper

• Impeller material: Brass

• Shaft material: SS304+45#

Physical parameters:

• Weight: 5.6 kg
• Color: Blue
